KYDD-1 TUKTUK-Electric garbage truck-

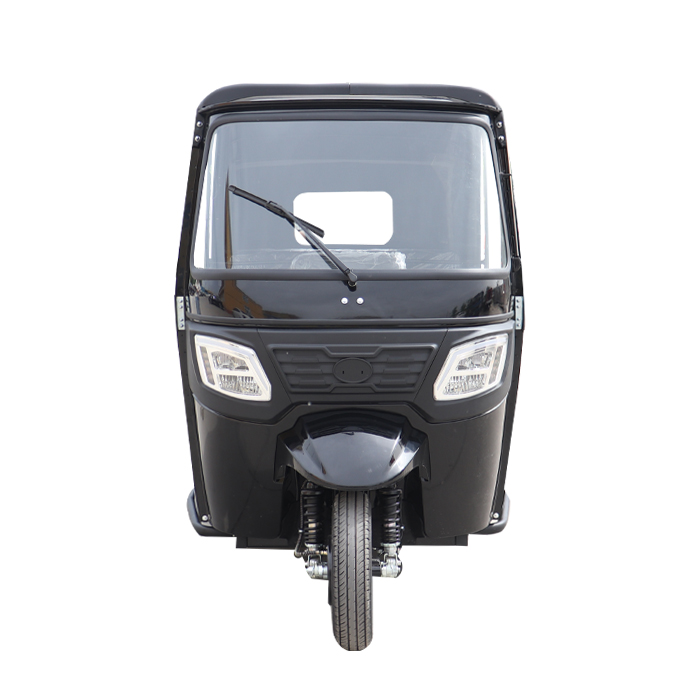

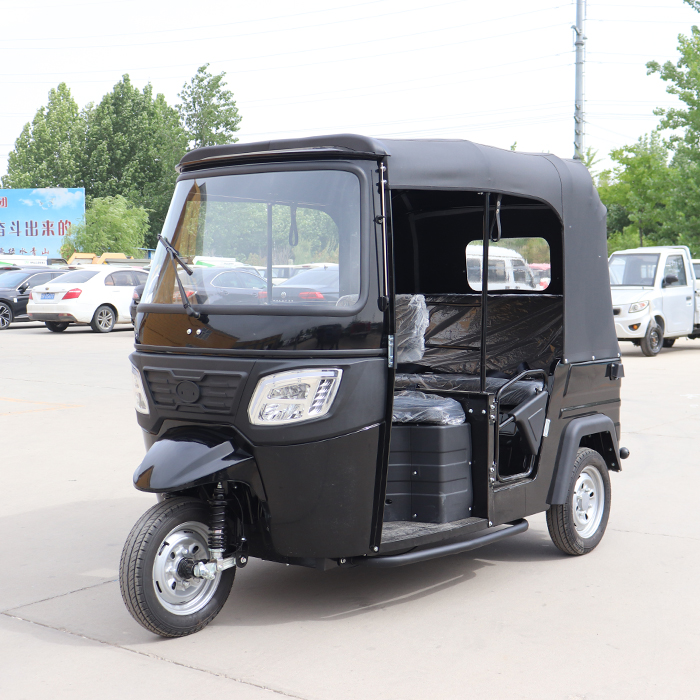

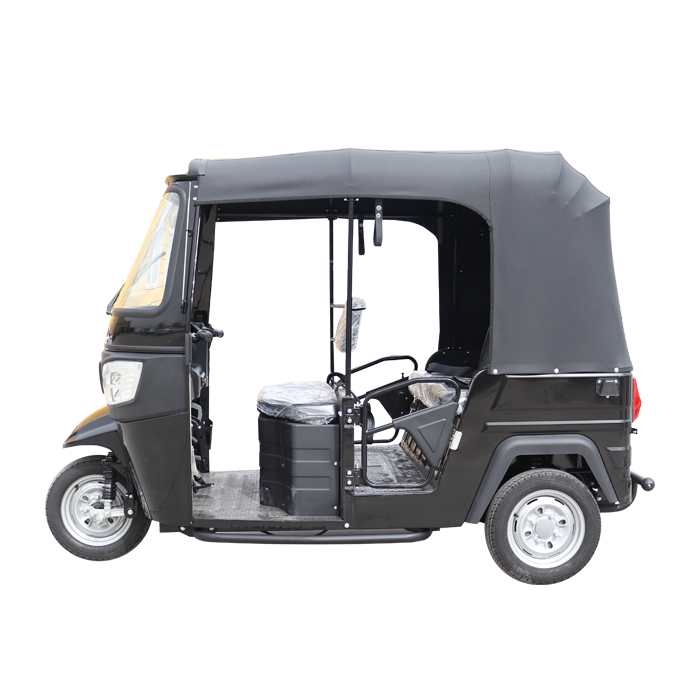

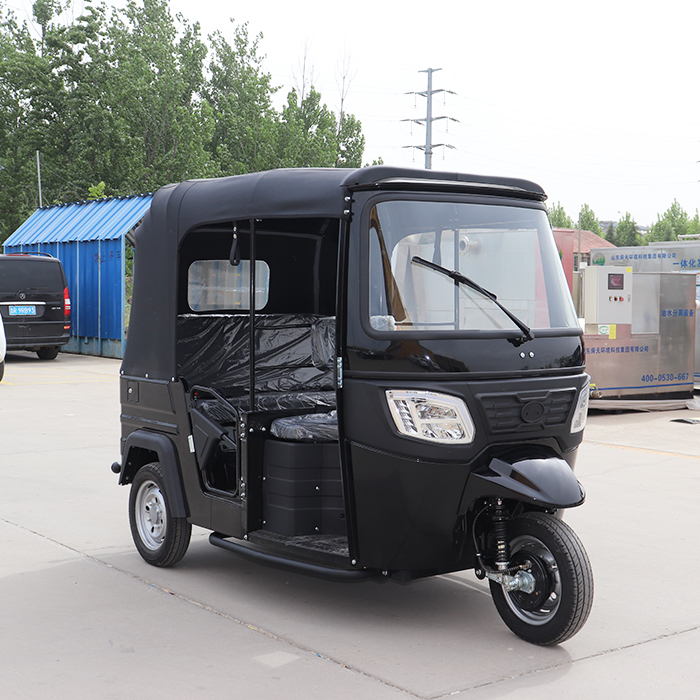

KYDD-1 TUKTUK

Electric Vehicle-KYDD-1 Cabinetx Configutation
	Model	KYDD-1
	Power system	Maximum passenger capacity
	Motor rated power	3000W(4000W/5000W selectable）
	Voltage platform	60V(72V selectable）
	Maximum flow limit	120A(180A selectable）
	Battery	60V120AH lithium iron phosphate battery/72V180AH lithium iron phosphate battery
	Maximum speed	45km/h
	Maximum climbing grade	20%
	L×W×H	2660mm×1430mm×1850mm
	Wheel base	1930mm
	Brake	Front and rear drum brake disc + hydraulic power foot brake + foot foot brake
	Transimission way	Rear powertrain ball cage equal-length axle drive
KYDD-1 60V-KYDD-1Split dragon skeleton + leather tarp, Rear powertrain ball cage equal-length axle drive,Front and rear double-row seats,Rear bracket type independent suspension + rear anti-roll stabilizer bar,Spring cylinder integrated shock absorber,60v3000w/72v4000w/72v5000w motor,The built-in 6015 charger includes a charging gun and a charging stand,60v120ah lithium battery,Electrical LCD instrument /LED lens front combined headlight +LED rear combined taillight, rear license light/multimedia radio + external antenna (support Bluetooth, USB playback) /USB dual plug-in charging stand/ceiling LED reading light.	Front/rear tire size	155/70R12 aluminum wheel
	Weight	60V3KW410Kg/72V4KW450Kg/72V5KW460Kg(Battery included）
	Cruise range	150km(60V120AH-Operating endurance）/190KM(72V180AH-Operating endurance)
	Charging time	Fully charged in 5-10 hours
	Multimedia	LCD instrument /LED lens front combined headlight +LED rear combined taillight, rear license light/multimedia radio + external antenna (support Bluetooth, USB playback) /USB dual plug-in charging stand/ceiling LED reading light
	Maximum passenger capacity	4 （2+2）
	Container loading quantity/（units/40'HQ)	27SET/40'HQ(SKD)
